首頁歐美晶振 MMDCOMP晶振T18BC1-13.000MHZ-T晶振,無人機數據傳輸晶振,高品質MMD晶振

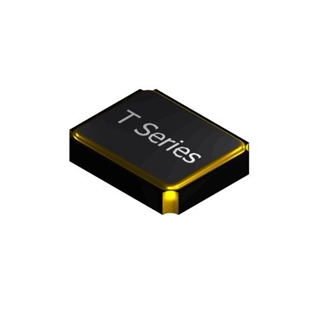

T18BC1-13.000MHZ-T晶振,無人機數據傳輸晶振,高品質MMD晶振

規格型號：68911737
頻率：13MHz
尺寸：3225mm
PDF
產品描述：T18BC1-13.000MHZ-T晶振,無人機數據傳輸晶振,高品質MMD晶振,MMDCOMP晶振,MMD晶振，T系列晶振，T18BC1-13.000MHZ-T晶振，3225晶振，汽車晶振，無人機晶振，超小型晶振，石英晶振，多功能方向盤晶振，中控系統晶振，工業...

T18BC1-13.000MHZ-T晶振,無人機數據傳輸晶振,高品質MMD晶振,MMDCOMP晶振,MMD晶振，T系列晶振，T18BC1-13.000MHZ-T晶振，3225晶振，汽車晶振，無人機晶振，超小型晶振，石英晶振，多功能方向盤晶振，中控系統晶振，工業設備晶振，醫療設備晶振，無源晶振，貼片晶振，陶瓷晶振，液晶儀表盤晶振，進口晶振，美國晶振，超小型晶振，電腦主板晶振，無源晶振，顯示器晶振，環保無鉛晶振。3.2mm X 2.5mm貼片，寬頻率范圍，符合RoHS標準，嚴格公差和穩定性。

T18BC1-13.000MHZ-T晶振,無人機數據傳輸晶振,高品質MMD晶振

頻率	13.000MHz
頻率容差/穩定度	(See Part Number Guide for Options)
工作溫度	(See Part Number Guide for Options)
儲存溫度	-40°C to +85°C
老化	±5ppm / first year Maximum
分流電容	5pF Maximum
負載電容	(See Part Number Guide for Options)
等效串聯電阻	See ESR Chart
驅動電平	10µW Typical / 100µW Maximum
絕緣電阻	500 Mega ohms Minimum at 100Vdc

T18BC1-13.000MHZ-T晶振,無人機數據傳輸晶振,高品質MMD晶振

編碼	品牌	型號	頻率	頻率穩定度	頻率容差	負載電容
DF10CC3-60.000MHZ-T	MMD	D	60 MHz	±30ppm	±15ppm	10 pF
DF18AA1-24.000MHZ-T	MMD	D	24 MHz	±100ppm	±50ppm	18 pF
DF18BA1-14.31818MHZ-T	MMD	D	14.31818 MHz	±50ppm	±30ppm	18 pF
DF18BA1-25.000MHZ-T	MMD	D	25 MHz	±50ppm	±30ppm	18 pF
DF18BA1-27.000MHZ-T	MMD	D	27 MHz	±50ppm	±30ppm	18 pF
DF18BB1-8.000MHZ-T	MMD	D	8 MHz	±50ppm	±30ppm	18 pF
DF18BC1-19.200MHZ-3T	MMD	D	19 MHz	±50ppm	±30ppm	18 pF
DF18CC1- 25.000MHZ-T	MMD	D	25 MHz	±30ppm	±15ppm	18 pF
DF18CC1-25.000MHZ	MMD	D	25 MHz	±30ppm	±15ppm	18 pF
DF20AA1-25.000MHZ-T	MMD	D	25 MHz	±100ppm	±50ppm	20 pF
DF20AA1-3.6864MHZ-T	MMD	D	3.6864 MHz	±100ppm	±50ppm	20 pF
DF20AA1-4.9152MHZ-T	MMD	D	4.9152 MHz	±100ppm	±50ppm	20 pF
DF20AC1-10.000MHZ	MMD	D	10 MHz	±100ppm	±50ppm	20 pF
DF20AC1-11.0592MHZ-T	MMD	D	11.0592 MHz	±100ppm	±50ppm	20 pF
DF20AC1-14.7456MHZ-T	MMD	D	14.7456 MHz	±100ppm	±50ppm	20 pF
DF20AC1-25.000MHZ-T	MMD	D	25 MHz	±100ppm	±50ppm	20 pF
DF20AC1-3.6864MHZ-T	MMD	D	3.6864 MHz	±100ppm	±50ppm	20 pF
DF20BA1-13.500MHZ-T	MMD	D	13.5 MHz	±50ppm	±30ppm	20 pF
DF20BA1-20.000MHZ-T	MMD	D	20 MHz	±50ppm	±30ppm	20 pF
DF20BB1-25.000MHZ-T	MMD	D	25 MHz	±50ppm	±30ppm	20 pF
DF20CC1-3.6864MHZ-T	MMD	D	3.6864 MHz	±30ppm	±15ppm	20 pF
DF20EB1-20.000MHZ-T	MMD	D	20 MHz	±50ppm	±50ppm	20 pF
DF20EC1-20.000MHZ-T	MMD	D	20 MHz	±50ppm	±50ppm	20 pF
DF20EC1-6.000MHZ-T	MMD	D	6 MHz	±50ppm	±50ppm	20 pF
DF22AA1-13.560MHZ-T	MMD	D	13.56 MHz	±100ppm	±50ppm	22 pF
DF32BB1-27.000MHZ-T	MMD	D	27 MHz	±50ppm	±30ppm	32 pF
DFSBB1-25.000MHZ-T	MMD	D	25 MHz	±50ppm	±30ppm
DSAA1-20.000MHZ	MMD	D	20 MHz	±100ppm	±50ppm
FF10AC1-13.560MHZ-T	MMD	F	13.56 MHz	±100ppm	±50ppm	10 pF
FF18AA1-12.000MHZ-T	MMD	F	12 MHz	±100ppm	±50ppm	18 pF
FF18EA1-14.7456MHZ-T	MMD	F	14.7456 MHz	±50ppm	±50ppm	18 pF
FF20AC1-8.000MHZ-T	MMD	F	8 MHz	±100ppm	±50ppm	20 pF
FF30BC1-25.000MHZ	MMD	F	25 MHz	±50ppm	±30ppm	30 pF
FF40BI1-8.704MHZ-T	MMD	F	8.704 MHz	±50ppm	±30ppm	40 pF
MMC-473-110.76625MHZ	MMD	MMC	110.76625 MHz	±25ppm	±15ppm
MMC-474-100.0325MHZ	MMD	MMC	100.0325 MHz	±25ppm	±15ppm
T10GC1-26.000MHZ-T	MMD	T	26 MHz	±30ppm	±10ppm	10 pF
T12BC1-19.200MHZ-T	MMD	T	19.2 MHz	±50ppm	±30ppm	12 pF
T18BC1-13.000MHZ-T	MMD	T	13 MHz	±50ppm	±30ppm	18 pF
T18BD1-24.000MHZ-T	MMD	T	24 MHz	±50ppm	±30ppm	18 pF
WC146SMF-32.768KHZ-T	MMD	WC146SM	32.768 kHz		±20ppm	12.5 pF
WC26SMFC-32.768KHZ-T	MMD	WC26SM	32.768 kHz		±10ppm	12.5 pF
X20AB1-16.000MHZ-T	MMD	X	16 MHz	±100ppm	±50ppm	20 pF
